Home > eStor
eStor
From ieei.tv

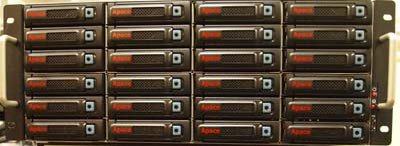

Up to 72TB!

In 4U Rack

eStor™ e4000 from ieei.tv

Apace Performance Network Storage

3.0TB Drive Technology Ready!!

Speed - 10G Ethernet workgroup support

Video - Designed for rendering, archive, animation, graphics & video distribution, housing Media Asset Management and Digital libraries

Accessibility - Browser based GUI assures remote access and management

Apace Systems enterprise class eStor series of Network Attached Storage (NAS) file-based storage systems are tailored for very fast video & media production, archive, and distribution. eStor systems include the functionality of server, NAS and RAID in a single chassis with great economics. With ever increasing demand for data and media centric applications, eStor is ideal for a variety of vertical applications in need of highest performance, lowest cost disk based network storage.

eStor Performance
Throughput*
IOPs* Capacity Target Markets
E4000 (2U, 3U)
Multi-Core/
Dual CPU x86
150-300
Mbytes/s
(RAID 5/6)
40-75K 16 – 32TB Data and video sharing and archive file and e-mail backup, broadcast, SD/HD media, graphics, medical imaging, & digital library. Lower cost.
E4000 (4U)
Multi-Core/
Dual CPU x86
300-400
Mbytes/s
(RAID 5/6)
85K 48 – 72TB Data centers, computer clusters, render farms, animations, graphics, & special effects storage, tapeless archive, MAM library management
* IOPs per Ramdisk access & performance based on read


Offering multi-GE/10GE network performance of up to 400 Mbytes/sec. eStor line is offered based on latest distribution of open standard Linux with an end-to-end 64 bit storage computing platform. Also, all eStor systems leverage state of the x86 64-bit (Multi-core) CPUs, latest GE and 10GE latest network connectivity, RAID 5 or 6 (protection from double disk failures) and drive technologies. eStor as a integrated storage server can be easily packaged with various application software options from Apace such as Octopa for media storage consolidation, postMAM for Global access MAM management and archive and Camera Ingesters line for ingest and management of large captured media content by most popular Cameras. Loaded with deep solid state cache it can also be tailored for I/O intensive and heavy disk write operations. eStor is shipped with web-based integrated network, storage and user management software for easy access and remote management. It provides utilities like system status warning and disk failure prediction via email/ page notification. eStor can be flexibly adapted to different workgroup environment and network setups offering a storage server platform for hosting Apace media workflow application and media asset management software.

Given the flexibility, scalability and high availability of eStor platform, it targets a wide variety of applications in the small and large data centers and networked work groups. Shared for storage by heterogeneous client workstations and server clusters based on PC, MAC, Unix and Linux systems, eStor supports all clients over ubiquitous Ethernet without client software or hardware. Systems address the high availability needs via robust redundancy at all aspect of the system with hot swappable Hard disk drives, fans and redundant power supplies and ECC registered memory. eStor disk based networked storage offers RAID 5/6 reliability, scalability, simplicity and speed. eStor line can be a primary file based storage system as well as be used for archival and disk based backup. eStor cn be an attractive option for tapeless workflows which capacities packing 72TB in a 4U rackmount configuration while offering much faster speeds than tape libraries.

eStor Models
P/N Raw
Capacity
H/W Description
E4000- 2U16TDB

16TB

2u 19" chassis, 8 hot-swap s-ATA data HDDs, two Multicore 64 bit x86 CPUs, 16GB ECC/Reg RAM, dual GigE ports, RAID 0, 1 & 5 and 460W p/s (optional redundant p/s)
E4000- 3U32TDB

32TB

3u 19" rack-mount, 16 hot-swap s-ATA HDDs, two Multicore 64 bit x86 CPUs, 16GB ECC/Reg RAM, Quad GigE ports, RAID 0, 1 & 5, 6 and 2+1 650W redundant power supply standard
E4000-4U 48TDB/72TDB

48TB/72TB

4u 19" rack-mount, 24 hot-swap s-ATA HDDs, two Multi-core 64-bit x86 CPUs, 32GB ecc/reg RAM, Dual port 10GbE (SFP+) NIC and 4x GigE ports, RAID 0/1/5/ 6, 3+1 950W redundant power supply standard

Main Features

10Gb Ethernet SFP+ interface
• 64-bit NAS tuned for speed
• Multi-core, dual AMD 64-bit Opteron CPUs
• 64-bit Linux based system software
• XFS support
• 2U 8-bay, 3U 16-bay, and 4U 24-bay 19" rack mount chassis with 16-72TB
• Hot-swap s-ATA II hard disk drives
• Web GUI for system and disk management
• User access and storage space management, re-sizing and password protection
• Optional Gigabit Ethernet ports
• Offering up to 32 GB of standard ECC/ registered cache configuration with custom upgrade option for more
• System status warning (email/ messaging)
• Hard disk failure prediction
• RAID 0, 1, 5, 6 & 10 configurable
RAID 6 option for better data protection & No degradation of performance during the rebuild with sustained throughput
Intelligent workspace to physical storage partition mapping/ user access right mapping per workspace & Intelligent Connection Manager for user access
• Fault-tolerant implementation (ECC/Reg DDR, hot plug fans, and redundant hot-plug power supplies.)
• Interoperable with MS Windows XP/NT, Apple Mac OS, Unix/ Linux clients

Key Benefits

• Content sharing for improved productivity
• Content available & accessible from any desktop on Ethernet/10GE LAN
• Offering Linux Based OPEN Standard File format storage for long term data longevity assurance
• Designed for video rendering, animation, graphics, effect, archive and distribution
• High performance NAS for video (150-400 Mbytes/sec in RAID 5), 320+ Mbytes/s RAID-6 with 4U configuration
• Simple capacity and volume management at the workspace, file and folder level
• Offering ability to provide FTP server or client services
• Scalable through Ethernet (GE/10GE)
• Multiple disk failure protection
• Easy to manage and use via web GUI
• Interoperable with all major OS's
• Centralized data management for optional Apace Asset Management, Apace Octopa facility wide storage consolidation and Apace Camera Ingester running on top & ideal pair with vStor Apace online storage to backup finished project as a near-line tapeless workflow solution
• Compatible with Apace File Management for Workspace virtualization and clustering
• Most cost-effective network storage and setup




Gold Channel Partner: IEEI.TV
Contact: Dennis Bress – President / CEO
p:714-878-1276 Email: dennis@ieei.com Web: www.ieei.tv
Back
Note: Avid Xpress/ Adrenaline, Apple FCP, Adobe Premiere, Pinnacle Liquid Edition, Sony Vegas and Canopus EDIUS are trademarks of corresponding companies. Apace is not affiliation of the companies listed. (* custom build)
